platform design at stations

The overall platforms layout at a variety of train stations were outdated, so ProRail issued a tender. Public-space design office Blom & Moors was awarded the assignment. For them, cepezed developed a waiting room, kiosk and glass windbreak, which also doubles as a leaning element.

  • client(s)
  • blom & moors ontwerp openbare ruimte
  • location
  • Nederland
  • user(s)
  • ProRail
  • expertise
  • architects

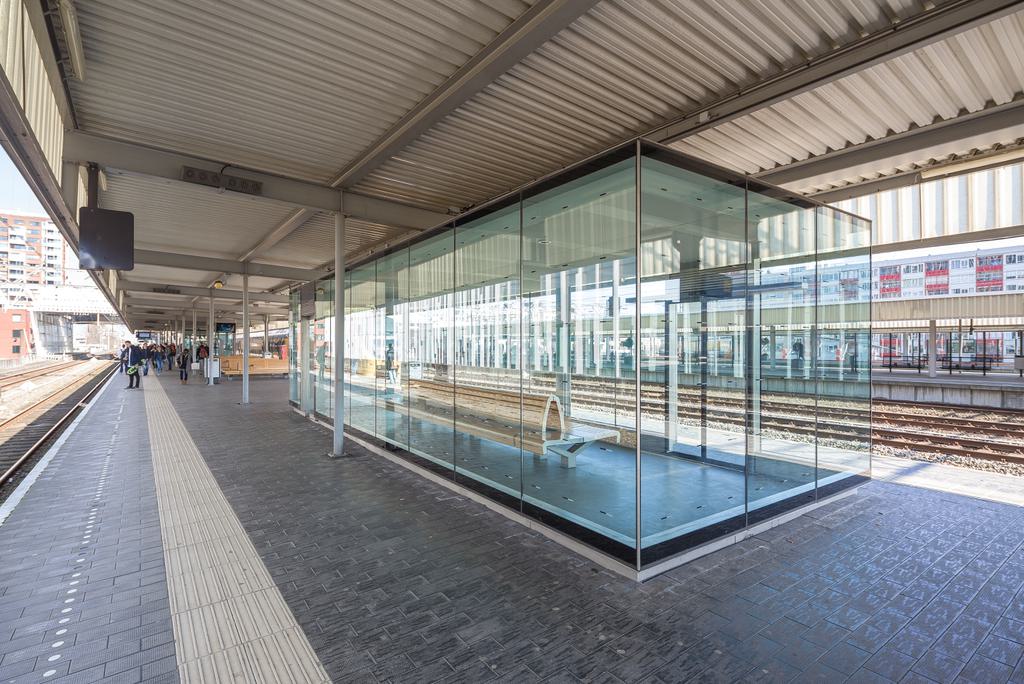

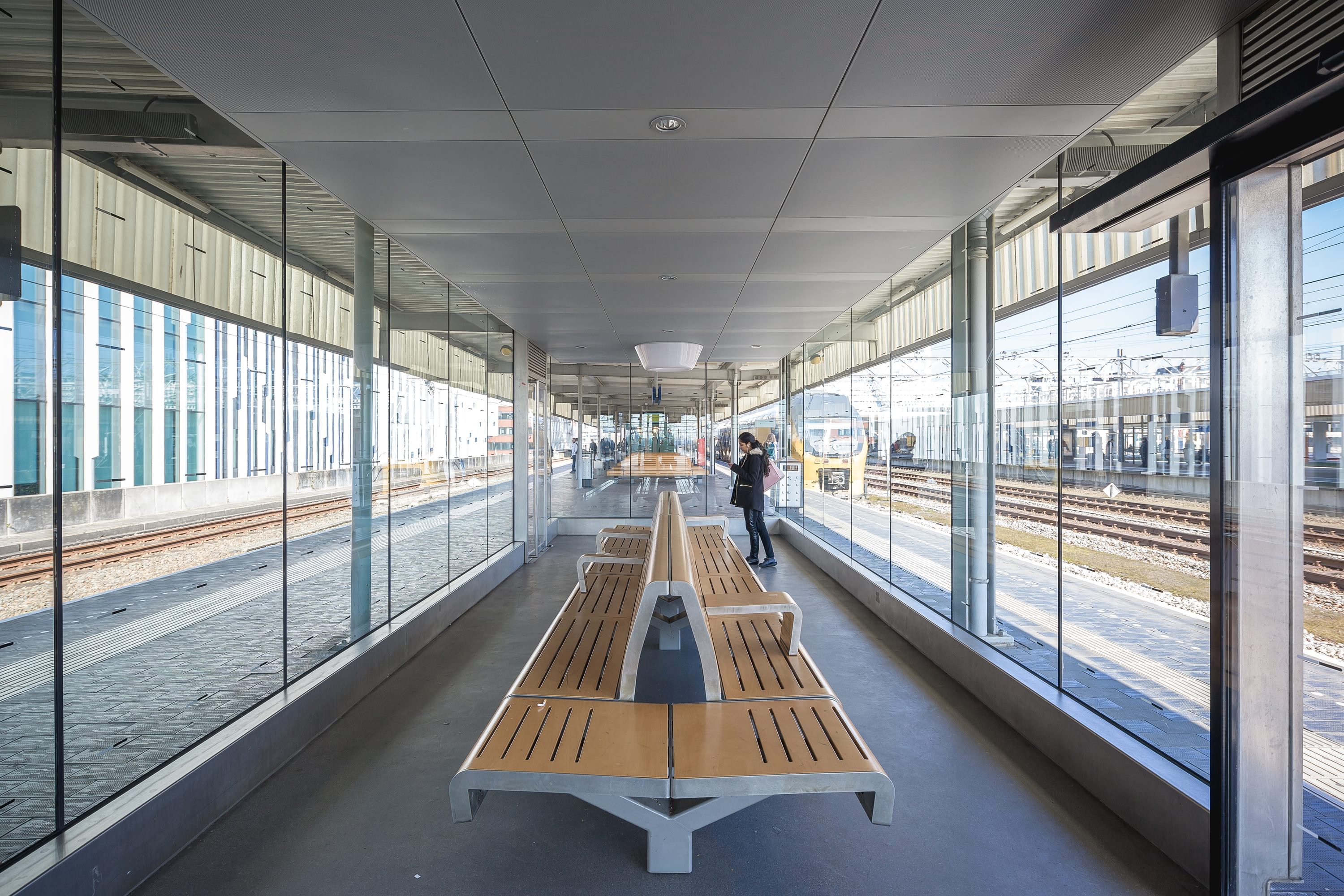

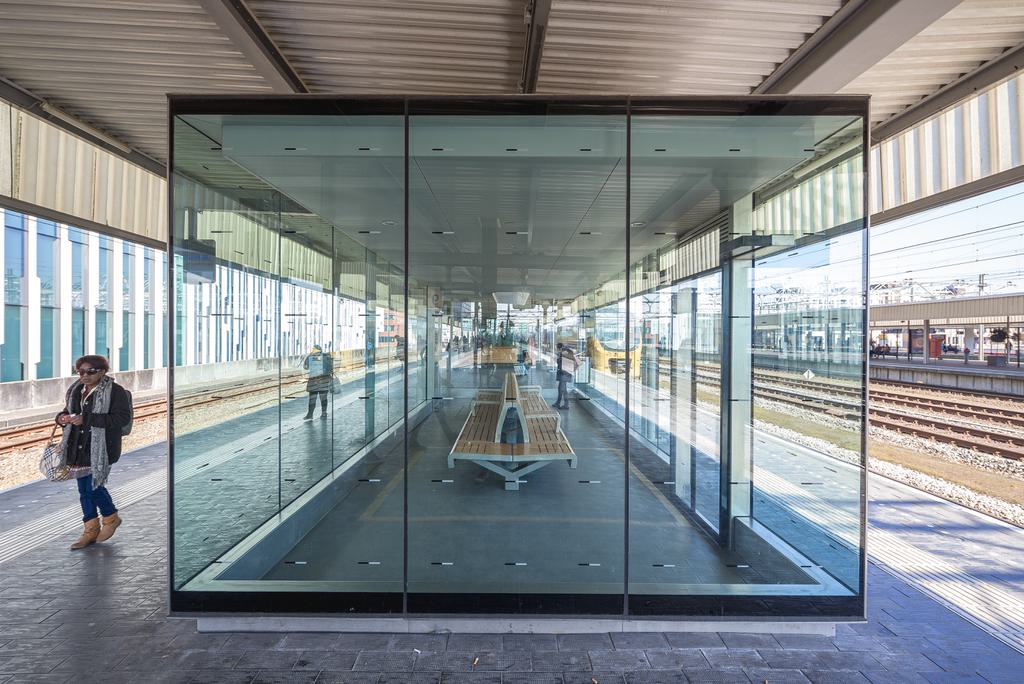

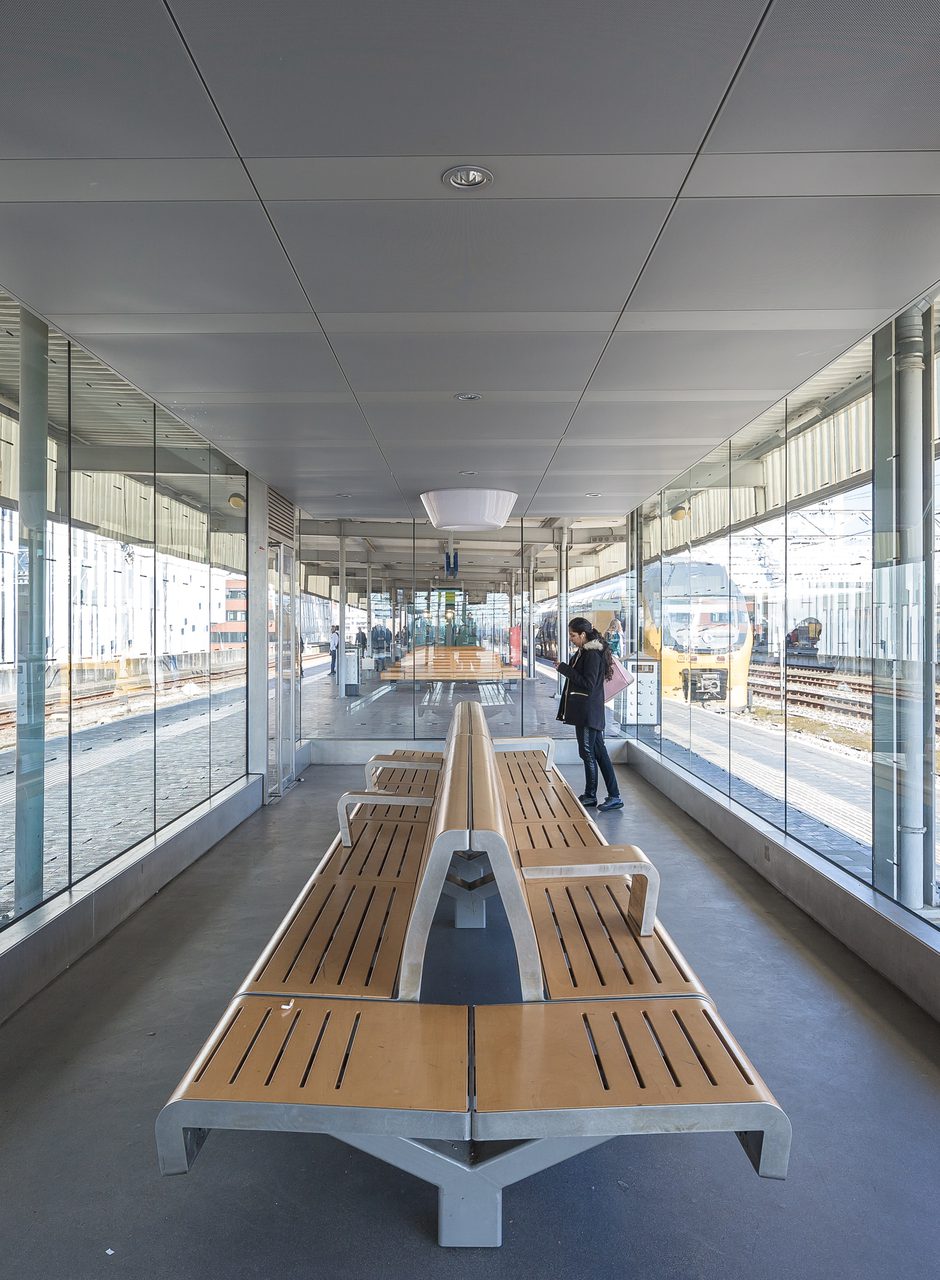

Transparent waiting room and kiosk

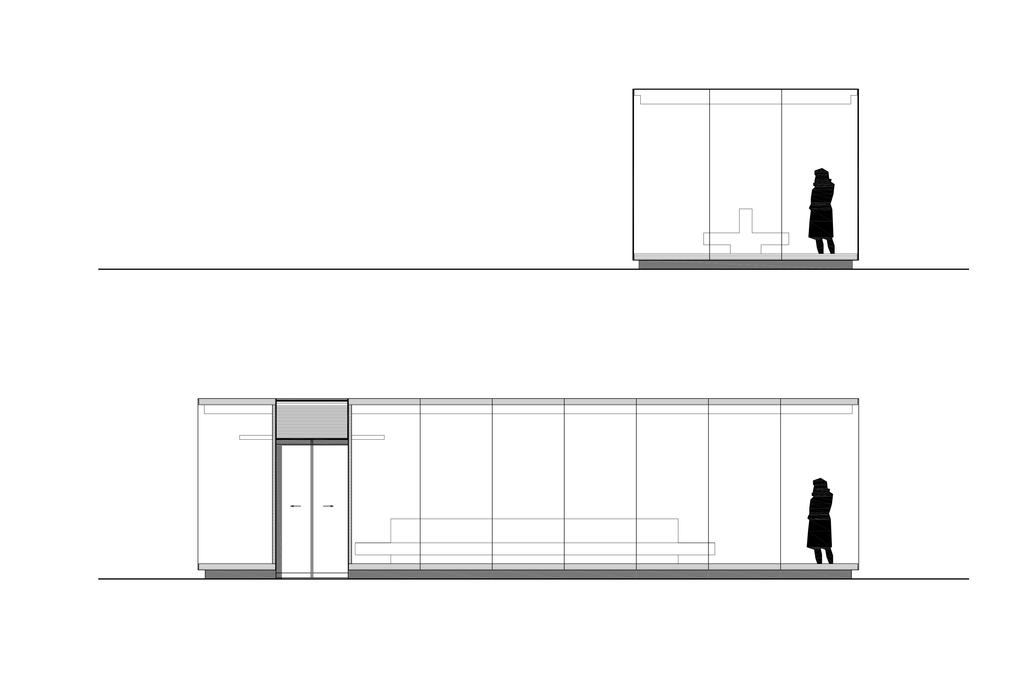

cepezed made the various designs with an optimum of transparency. As a result, the three-metre-high waiting room and kiosk have glass walls. These been assembled fully flush. The constituent panels have been glued. On the underside, they are attached to a recessed plinth of stainless steel.

Léon van Woerkom | cepezed
cepezed

The roof package

The roof package of the waiting room and kiosk consists of a prefabricated timber-frame construction that also lends stability. Its minimal height incorporates acoustic facilities and cabling for the lighting.

Léon van Woerkom | cepezed

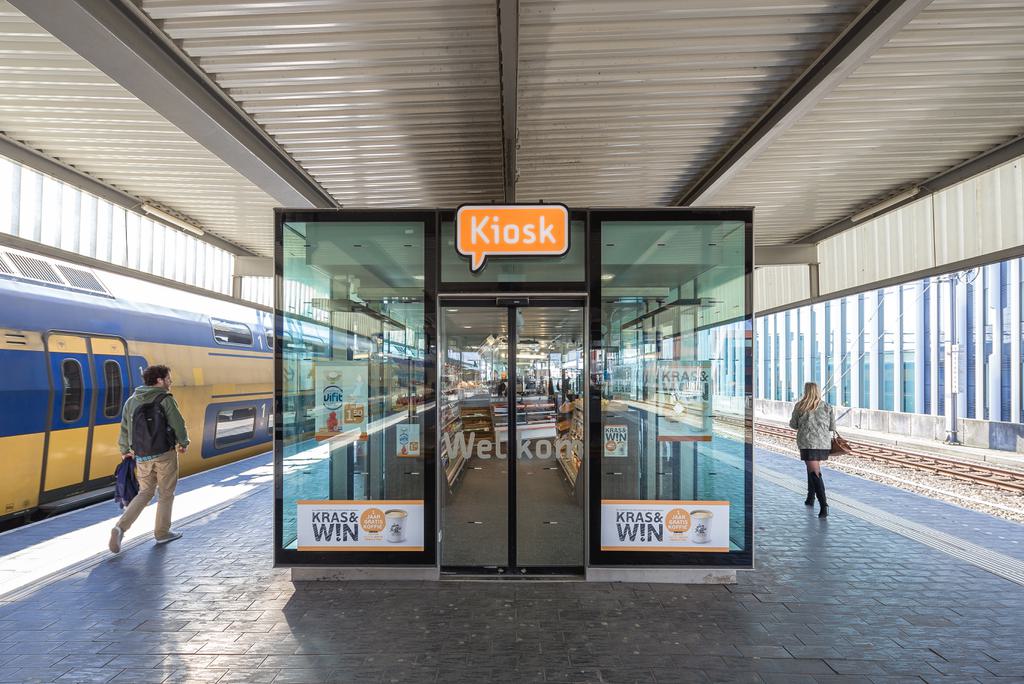

Kiosk versus Waiting room

The kiosk on the platform is also a working space, so the walls are double-glazed. Its roof package is also thicker than on the waiting room. One façade section is closed because a kiosk needs more service facilities than a waiting room.

Léon van Woerkom | cepezed

Windbreak gives the platform colour

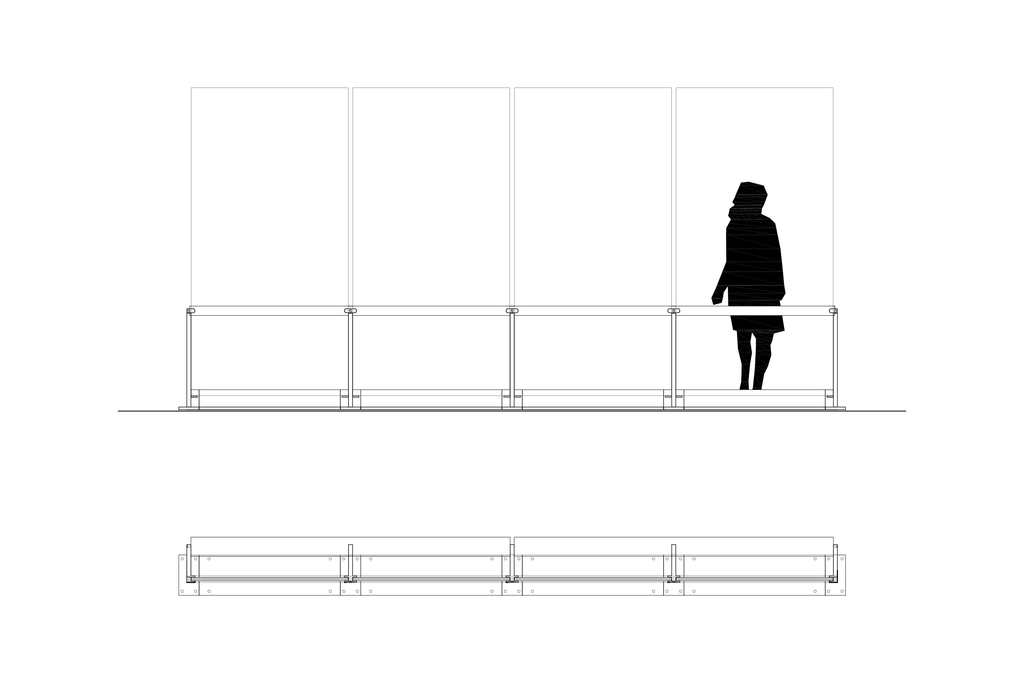

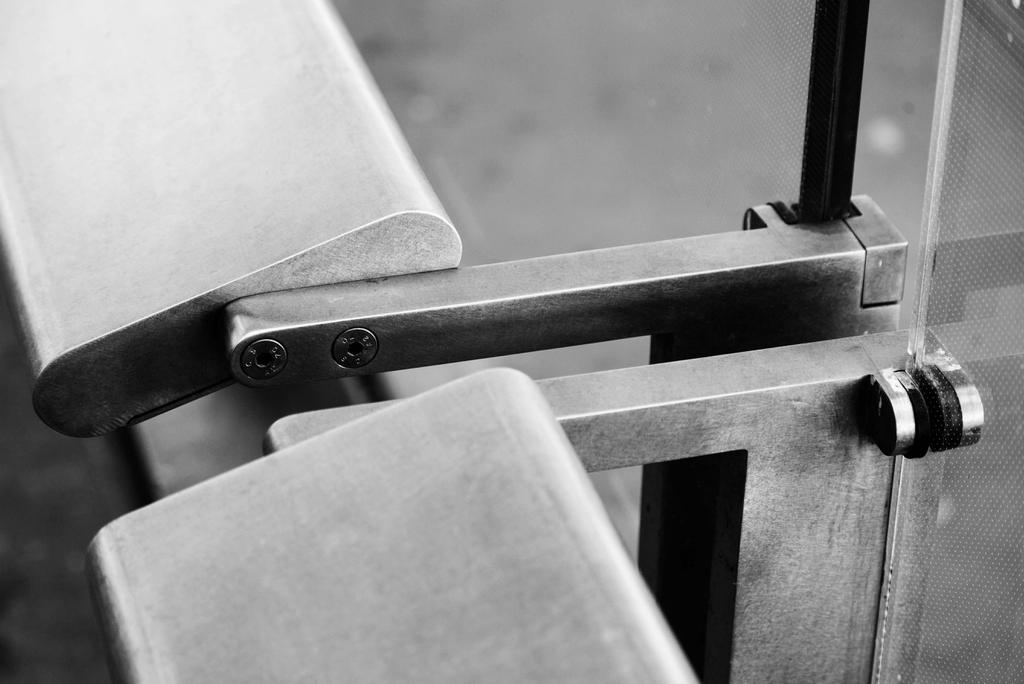

The windbreak consists of a stainless-steel frame with LED element and standing-sitting support in one. A double-glazed panel is clamped in between. A barely visible dot pattern is screen printed onto the glass panels.
Because the panels can be illuminated in different colours, each platform has its own appearance.

cepezed
jannes linders

A suitable element for each station

The various facilities on the platforms have a modular set-up: this allows for rapid construction and variation in size. It means that a suitable element can be composed for each station.

The renewed station fixtures were implemented in various combinations. At Leiden Central Station, this included the installation of a waiting room and kiosk. At Amsterdam Bijlmer Arena station, the installed fixtures include the dual-function glass wind break and leaning element.

jannes linders

partners

  • client: blom & moors ontwerp openbare ruimte
  • stability: swinn
  • main contractor: jan kuipers
